ARM Flash Programmer (XStreamPro-Iso) Target View
Need help with your purchase?

Send an email to support@elprotronic.com or give us a call at +1-905-539-0424.

FlashPro-ARM (X2S)

by Elprotronic Inc.
SKU X2S-FP-ARM
$769.00 - $769.00
$769.00
$769.00 - $769.00
$769.00

Free shipping on orders from $400

  • Embedded Flash programmer. XStreamPro-Iso hardware adapter runs with FlashPro-ARM software.
  • Supports JTAG, cJTAG, and SWD communication.
  • Programmable communication clock up to 20 MHz, effective throughput up to 1 MBytes/s.
  • Standalone Mode (Auto Program with GO button from internal flash) - ARM (select vendors listed below, full support coming soon).
  • Ethernet and USB connectivity.
  • Power supply from adapter available, up to 200 mA.
  • Deep-Sleep mode current measurement from 5 nA to 200 mA.
  • Customizable Vcc from 1.2 to 4.0V.
  • Galvanic Isolation between computer and target (XStreamPro-Iso up to 1.0kV)
  • CMSIS-DAP 2.0 ARM Debugger included (IAR EWARM, Keil uVision, etc. debugging support). Debugger features.
  • Benchmarks
Programs MCUs from ALL of these Vendors:
  • Texas Instruments (MSP M0/432, CC SimpleLink, TIVA-C),
  • ST Microelectronics (STM32 Lx, Fx, Hx, Gx, Ux, WB, WL, BlueNRG),
  • Silicon Labs (EFM32, EFR32, EM zigbee, SIM3),
  • Silergy (MAX),
  • Renesas (Synergy),
  • NXP/Freescale (Kinetis, LPC, S32K, K32x, i.MX RT, and more),
  • Nordic Semiconductor (nRF),
  • Microchip/Atmel (SAM),
  • Maxim Integrated (MAX),
  • Marvell (88M),
  • Infineon/Cypress (FM0+, FM3, FM4, PSoC 4, PSoC 5LP, PSoC 6, Traveo),
  • Analog Devices (Precision),
  • Active-Semi (PAC).
Software Package:
  • Easy to use GUI runs on Windows(TM) XP, 7, 8, 10, and 11.
  • Shared library and Command-Line support (Debian Linux).
  • DLL and Command-Line support (Windows).
  • C++, C#, Python code examples provided.
  • Download installer for: Windows, Debian (x86-64), and Debian (ARM)
  • Debugging User Guide
Package contains:

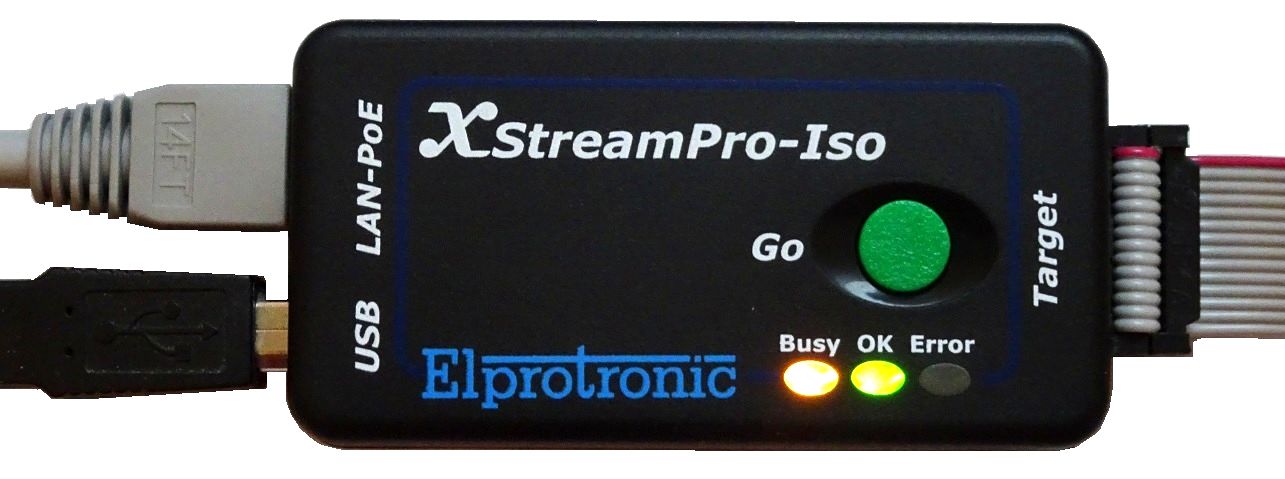

  • XStreamPro-Iso 1.4 programming adapter (14-pin connector),
  • USB cable,
  • ARM 14-pin to 20-pin/10-pin adapter with two ribbon cables (20-pin and 10-pin),
  • One Year Warranty,
  • Unlimited time software usage license, no limit on number of programmed devices,
  • No code size limitations,
  • One Year free software updates,
  • Software Update License Renewal is optional (only needed for updates to run newer software version after one year).  Already used software version will run indefinitely, with no need for license renewal.
