GangPro-X (X2S)
SKU X2S-GP-X
Original price
$0
Original price
$1,319.00
-
Original price
$1,319.00
Original price
Current price
$1,319.00
$1,319.00
-
$1,319.00
Current price
$1,319.00
Free shipping on orders from $400
Main Product Features (Software Features and Details Page) :

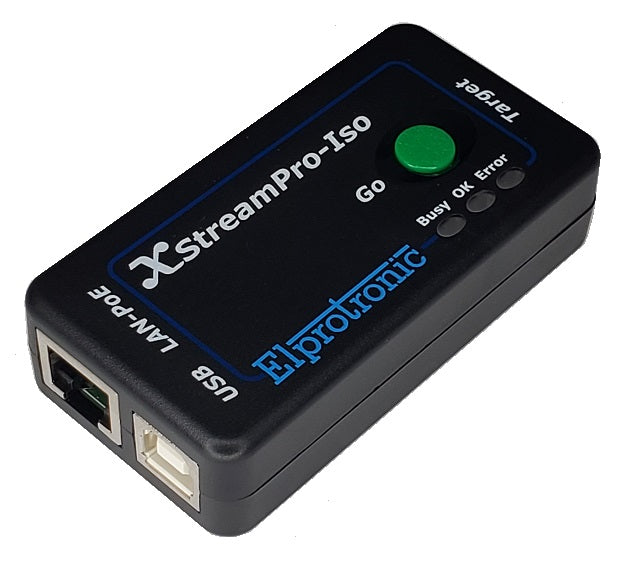

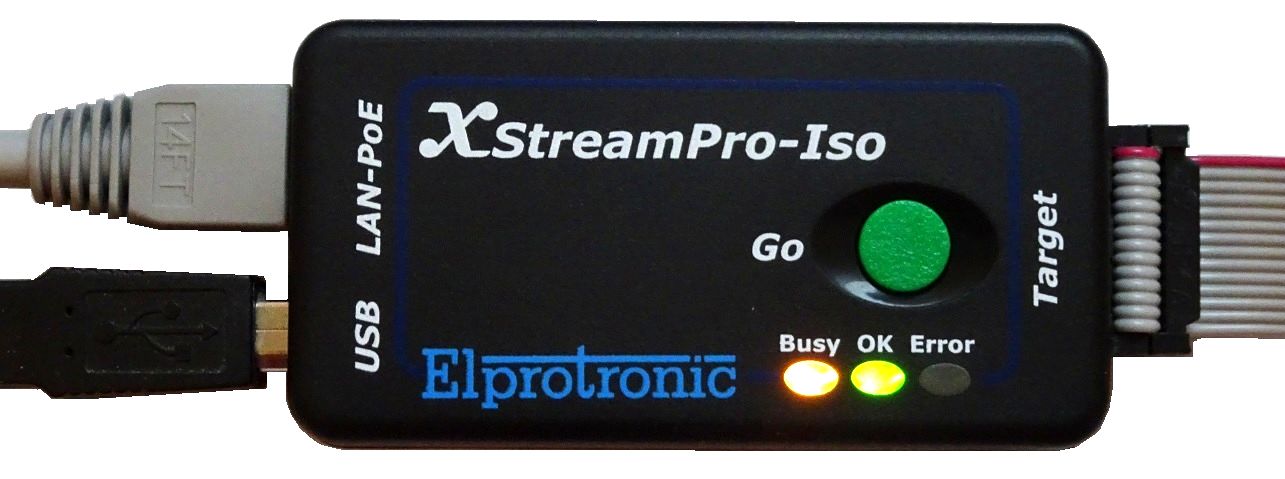

- Embedded Flash programmer. XStreamPro-Iso hardware adapter runs with all GangPro- and FlashPro- Elprotronic Inc. software.
- Programmer for All vendors, and All families, sGupported by Elprotronic Inc.
- Can be run with any Flash or Gang software.
- Program up to Six (6) targets simultaneously.
- Supports JTAG, cJTAG, and SWD communication (ARM).
- Supports JTAG, SBW, and BSL communication (MSP430).
- Supports JTAG/SPI/TPI/PDI/UPDI/SWIM communication (STM8/AVR/PIC)
- Supports debug interface communication (SimpleLink).
- Supports JTAG, and SCI-BOOT communication (C2000).
- Support QSPI, and SPI for external flash memory.
- Programmable communication clock up to 20 MHz, effective throughput up to 1 MBytes/s.
- Standalone Mode in FlashPro mode (Auto Program with GO button from internal flash) - MSP430 and ARM (select vendors).
- Ethernet and USB connectivity.
- Power supply from adapter available, up to 200 mA.
- Deep-Sleep mode current measurement from 5 nA to 200 mA.
- Customizable Vcc from 1.2 to 4.0V.
- Galvanic Isolation between computer and target (XStreamPro-Iso up to 1.0kV)
- IAR EW430 debugging support.
- CMSIS-DAP 2.0 ARM Debugger included (IAR EWARM, Keil uVision, etc. debugging support). Debugger features.
Programs MCUs from ALL of these Vendors:
- Texas Instruments (MSP M0/430/432, CC SimpleLink, TIVA-C, C2000),
- ST Microelectronics (STM32 Lx, Fx, Hx, Gx, Ux, WB, WL, BlueNRG, STM8),
- Silicon Labs (EFM32, EFR32, EM zigbee, SIM3),
- Silergy (MAX),
- Renesas (Synergy),
- NXP/Freescale (Kinetis, LPC, S32K, K32x, i.MX RT, and more),
- Nordic Semiconductor (nRF),
- Microchip/Atmel (SAM, AVR, PIC),
- Maxim Integrated (MAX),
- Marvell (88M),
- Infineon/Cypress (FM0+, FM3, FM4, PSoC 4, PSoC 5LP, PSoC 6, Traveo),
- Analog Devices (Precision),
- Active-Semi (PAC).
Programs External Flash memory from ALL of these Vendors:
Software Package:
- Easy to use GUI runs on Windows(TM) XP, 7, 8, 10, and 11.
- Shared library and Command-Line support (Debian Linux).
- DLL and Command-Line support (Windows).
- C++, C#, Python code examples provided.
- Accepts all installers, depends on MCU family. Download MSP/ARM/CC/C2000, etc. installer from downloads page.
- Debugging User Guide
Package contains:
- XStreamPro-Iso 1.4 programming adapter (14-pin connector),
- USB cable,
- 14-pin MSP430-JTAG/SBW/BSL ribbon cable,
- MSP430-BSL 14-pin to 10-pin adapter and ribbon cable,
- C2000-JTAG 14-pin to 14-pin adapter and ribbon cable,
- C2000-SCI-BOOT 14-pin to 10-pin adapter and ribbon cable,
- ARM 14-pin to 20-pin/10-pin adapter with two ribbon cables (20-pin and 10-pin),
- AVR 14-pin to 10-pin adapter and ribbon cable,
-
STM8 14-pin to 10-pin adapter and ribbon cable,
- One Year Warranty,
- Unlimited time software usage license, no limit on number of programmed devices,
- No code size limitations,
- One Year free software updates,
- Software Update License Renewal is optional (only needed for updates to run newer software version after one year). Already used software version will run indefinitely, with no need for license renewal.
- *GangSplitter not included*
