GangPro-M-1V (XS)
SKU XS-GP-M-1V
Original price
$759.00
-
Original price
$759.00
Original price
$759.00
$759.00
-
$759.00
Current price
$759.00
Free shipping on orders from $400
Main Product Features (Software Features and Details Page) :

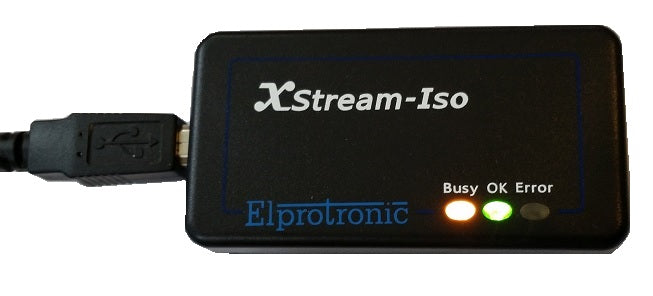

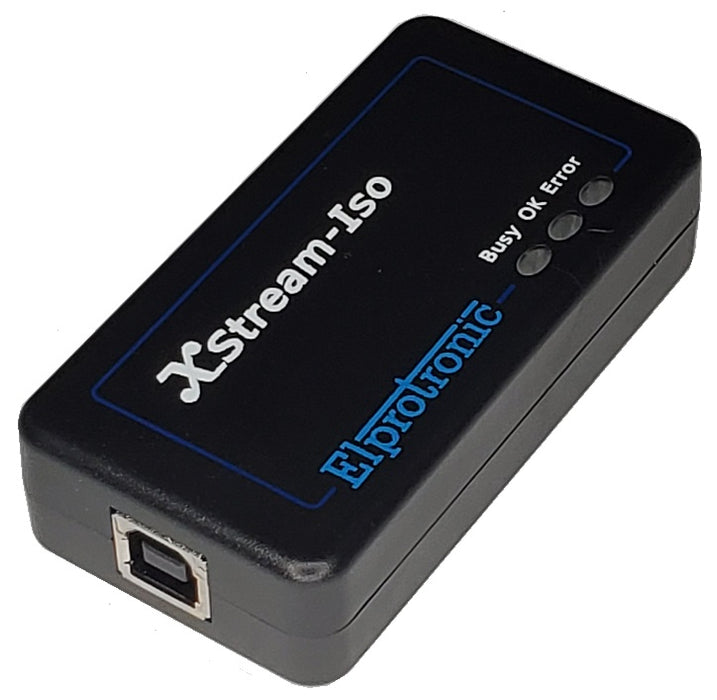

- Embedded Flash programmer. XStream-Iso hardware adapter runs with GangPro-M and FlashPro-M software.
- Program up to Six (6) targets simultaneously.
- Supports JTAG/QSPI/SPI/TPI/PDI/UPDI/SWIM communication.
- Programmable communication clock up to 12 MHz, effective throughput up to 600 KB/s.
- Serial flash communication clock up to 20 MHz, effective throughput up to 1 MB/s.
- Power supply from adapter available, up to 200 mA.
- Current measurement from 20 uA to 200 mA.
- Customizable Vcc from 1.65 to 4.0V.
- Galvanic Isolation between computer and target (XStream-Iso up to 2.5kV)
- Benchmarks
Programs MCUs from ONE of these Vendors:
- ST Microelectronics (STM8)
- Renesas (RL78)
- Serial Flash option includes external flash memory from all below:
Software Package:
- Easy to use GUI runs on Windows(TM) XP, 7, 8, 10.
- Shared library and Command-Line support (Debian Linux).
- DLL and Command-Line support (Windows).
- C++, C#, Python code examples provided.
- Download installer for: Windows, Debian (x86-64), and Debian (ARM)
Package contains:
- XStream-Iso 1.1 programming adapter,
- USB cable,
- FPA to JTAG 14-pin to 10-pin adapter and ribbon cable,
- One Year Warranty,
- Unlimited time software usage license, no limit on number of programmed devices,
- No code size limitations,
- One Year free software updates,
- Software Update License Renewal is optional (only needed for updates to run newer software version after one year). Already used software version will run indefinitely, with no need for license renewal.
