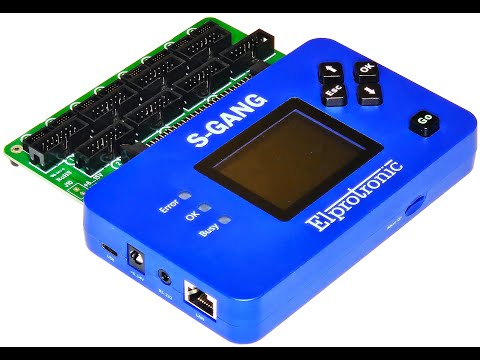

S-GANG - Standalone Gang Programmer

A new fast, flexible, and reliable Gang programming solution.

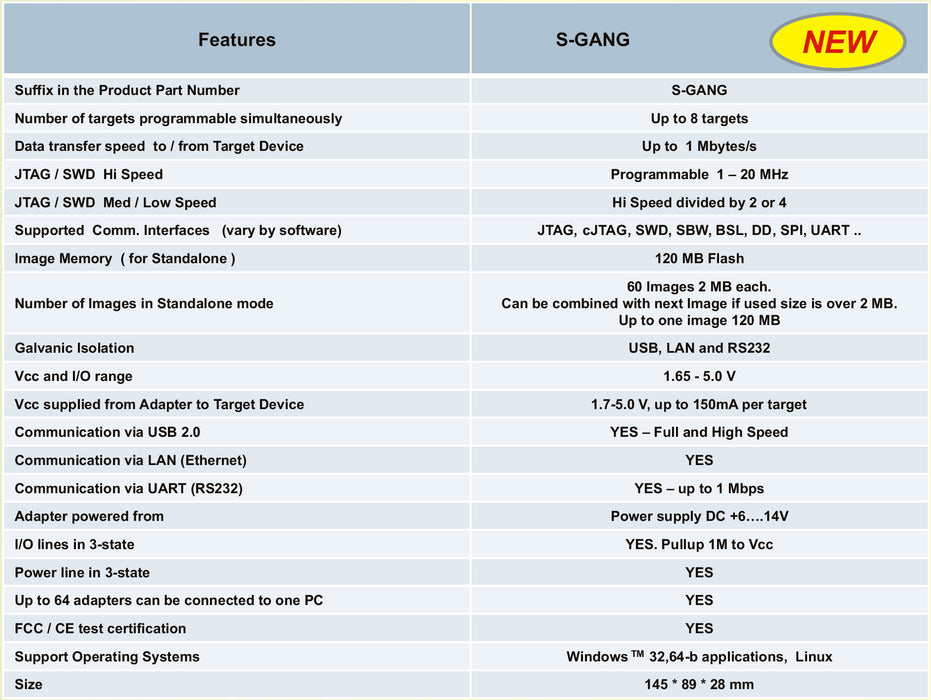

Utilizing the newest technology, this programmer can:

1. Program up to 8 targets simultaneously
2. Control each connected target separately (full separate connections: power, reset and communication pins, only common pin is GND)
3. Run in Standalone and PC-interactive programming modes
4. In Standalone mode, program 8x targets, from up to 60 images, comprising 120 MB in total from internal flash
5. Option to load more images or larger files from insertable MicroSD card
6. Program external flash/EEPROM directly over SPI and/or via MCU as proxy (similar to XStreamPro-Iso proxy capability) using target MCU's own peripherals.
7. Windows (32-bit and 64-bit) and Linux support
8. USB, Ethernet, and RS232 connectivity from PC to programmer
9. Programmer-to-target supported protocols:
   ARM: JTAG, cJTAG, SWD
   MSP430: JTAG, SBW, BSL
   STM8/AVR/PIC/RL78: JTAG/SPI/TPI/PDI/UPDI/SWIM
   C2000: JTAG, SCI-BOOT
   iMOTION 2.0: SWD, UART
   SPI Flash: SPI, QSPI
10. Galvanic isolation (USB, Ethernet, RS232), and post-programming tri-state pin support.
11. Vcc (1.65V to 5V), and programmable 1-20 MHz target clock
12. Serialization, Functional Testing, Quota, Parallel Gang Programming features.

13. CLI, and C++/C#/LabView support with demo applications. Connect multiple programmers to one PC for integrated programming fixtures (up to 64)
14. MCU support:

• ARM
  • TI : MSPM0, MSP432, SimpleLink (CC ARM-based), TMxC,
  • ST: STM32, BlueNRG,
  • SiLabs: EFR32, EFM32, SiM3, EM_3xxx
  • Renesas: RA
  • NXP: Kinetis, LPC, K32L/W, S32K
  • Nordic: nRF
  • Microchip: SAMx
  • Maxim: MAX

  • Marvell: 88M
  • Infineon: FMx, PSoC
  • GigaDevice: GD32
  • Analog Devices: ADuCM
  • Active-Semi: PAC

• SPI external flash (Adesto, Cypress, GigaDevice, ISSI, Macronix, Microchip, Micron, Winbond)
• MSP430
• SimpleLink (non-ARM 8051) (Q1 2025)
• C2000 (Q1 2025)
• STM8, RL78, AVR, PIC (Q1 2025)
• iMOTION 2.0 (Q1 2025)


Pricing (USD):

1. Up to 1 x Target programmed in parallel - $945.00
2. Up to 2 x Target programmed in parallel - $1,245.00
3. Up to 3 x Target programmed in parallel - $1,515.00
4. Up to 4 x Target programmed in parallel - $1,745.00
5. Up to 5 x Target programmed in parallel - $1,945.00
6. Up to 6 x Target programmed in parallel - $2,115.00
7. Up to 7 x Target programmed in parallel - $2,245.00
8. Up to 8 x Target programmed in parallel - $2,355.00
9. Purchased S-GANG programmers can be upgraded online to program more units at a future date, at $300/target (i.e. a 7x licensed S-GANG can be upgraded to an 8x licensed S-GANG at a cost of $300)
